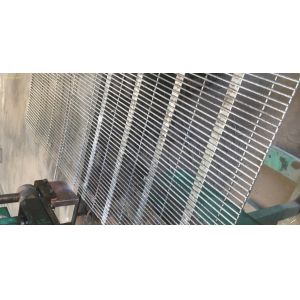

1.Material: Manufactured from hard drawn wire and electro-resistance welded at every intersection.
2.Popular Specification
76.2mm (3") x 12.7mm (0.5") welded at each intersection
Horizontal wires: 4mm diameter at 12.7mm centres
Vertical wires: 4mm diameter at 76.2mm centres
Weld strength: 75% of the minimum tensile strength of the wire
Tensile range 540-690 N/m²
Panel height:2.0m, 2.3m, 2.5m,3.0m,3.3m,3.5m
Panel width:2.2m2.5m
Post: 60x60x2.5mm,80x80x2.5mm,100x60x3mm,100x100x3mm
| mesh panel height | 0.9m-5.2m |
| mesh panel width | 2m,2.2m,2.5m,3m |
| hole opening | 12.7mmx76.2mm(1/2''x3'') |
| wire thickness | 3mm,4mm,5mm |
| material | low carbon steel wire galvanized wire |
| finished | electric galvanized, hot dipped galvanized, polyester paint |
| polyester painting colour | any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
| curves | on request |
| C post | 62mmx83mmx3mm |
| round post | outside diameter:80mmx3mm |
| rectangular post | 60mmx80mmx3mm,60mmx120mmx3mm |
| post length | on request(normal 2.3mm-4m) |
| material | square steel pipe, round steel pipe, C type steel |
| finished | electric galvanized, hot dipped galvanized, PVC coated |
| polyester painting colour | any RAL series color(normal RAL 6005-dark green,RAL9005-black) |
Securifor 358 Hi-Security System
| Panels | Posts | ||||
| Fence | Panel Size | section | O/A Length | Total number of fixings | |
| height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
| m | mm | ||||
| 2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
| 2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
| 3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
| 3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
| 3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | |
| 3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 26 | |
Securifor 358 Maximum Security System
| Panels | Posts | ||||
| Fence | Panel Size | section | O/A Length | Total number of fixings | |
| height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
| m | mm | ||||
| 4.2 | 4204 x 2515 | 100x100x4mm | 5200 | 15 | 30 |
| 4.5 | 4496 x 2515 | 100x100x5mm | 5500 | 16 | 32 |
| 5.2 | 5207 x 2515 | 120x120x5mm | 6200 | 18 | 36 |
SECURITY TO TOP OFFENCE:
- Single/double L shaped or T shaped arm for twin strand barbed wires at 150mm c/s.
- Coiled BTC 730mm diameter fixed to the arms.
- Coiled BTC 730mm diameter fixed inside and outside of the top offence clipped to mesh panels
SECURITY AT BOTTOM OFFENCE:
- Mesh buried vertically min 300mm
- In-situ concrete cill generally 300mm x 150 mm or to site-specific needs.
Fencing High-Security POSTS:
The section of posts depends on fence height but typically for 3m above ground, 120mm x 60mm RHS. Larger for higher fences. For prisons posts, 149mm diameter x 6.33mm wall thickness is preferred.
FIXINGS:
Mesh panels fixed top-posts with clamps at 300mm c/s or full length clamping strips. Clamps also at 300mm centres. Bolts to pass through posts. This type of heavy welded mesh fence does not require straining posts or struts.
FINISH:
Alternative protection coatings to mesh panels.
- Galfan coated wire to BE EN 10244 - 2.2001 Class A (zinc/aluminium alloy weight 275gm/m²) giving a high level of corrosion protection
- Commercially Galvanised wire to BE EN 10244 - 2.2001 Class D
- Polyester powder coated over a galvanised core
